Multiply Complement Colour
Multiply Complement Colour


Overview

The Multiply Complement family of nodes allow you to multiply the colour/scalar coming into the Main Input by the complement of the color/scalar coming into Input 2.


The complement of a component value can be derived by subtracting the component value from the maximum possible value. For example, the pixel values in a greyscale image range from 0 - 255. The complement of a pixel value of 100 is 155. Likewise the complement of a pixel value of 0 is 255, and a pixel value of 255 is 0.


The multiplication is component-wise, for example with a colour:

    Main Input.red multiplied by the complement of Input 2.red
    Main Input.green multiplied by the complement of Input 2.green
    Main Input.blue multiplied by the complement of Input 2.blue


In the examples below, this image is used by the Image Map shader assigned to the Multiply complement colour’s Main input:

Colour source image used for examples below.
Colour source image used for examples below.


This example illustrates the effect of assigning greyscale colour values to Input 2 of the Multiply complement colour node. The complement of black is white, so there is no change to the value assigned to the Main input, whereas the complement of white is black, which results in black as the output. Grey values between white and black darken the values assigned to the Main input.

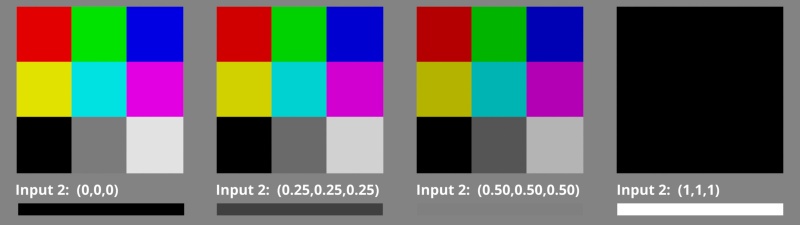

The effect of the Multiply Complement Colour node when greyscale values are used for Input 2.
The effect of the Multiply Complement Colour node when greyscale values are used for Input 2.


This example shows the effect of assigning red, green, or blue values to Input 2 of the Multiply complement colour node. Where the component values from the Main input and Input 2 are the same, black is the result.

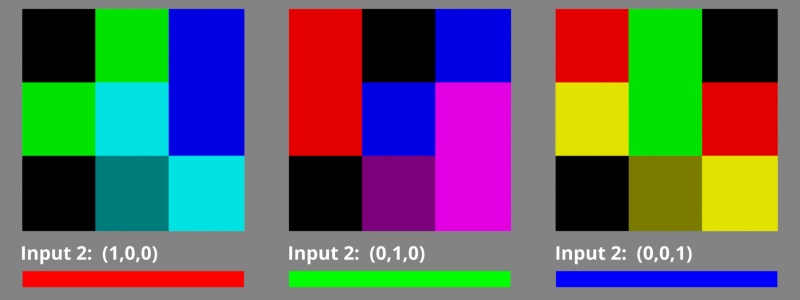

The effect of the Multiply Complement Colour node when red, green, or blue is used for Input 2.
The effect of the Multiply Complement Colour node when red, green, or blue is used for Input 2.


This example shows the effect of assigning secondary colours, yellow, magenta, or cyan to Input 2 of the Multiply complement colour node. Where the component values from the Main input and Input 2 are the same, black is the result.

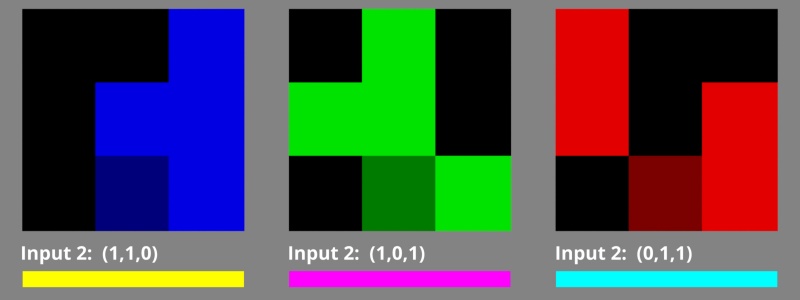

The effect of the Multiply Complement Colour node when yellow, magenta, or cyan is used for Input 2.
The effect of the Multiply Complement Colour node when yellow, magenta, or cyan is used for Input 2.


In the examples below, this image is used by the Image Map shader assigned to the Multiply complement colour’s Main input

Greyscale source image used for examples below.
Greyscale source image used for examples below.


This example illustrates the effect of assigning greyscale colour values to Input 2 of the Multiply complement colour node. The complement of black is white, so there is no change to the value assigned to the Main input, whereas the complement of white is black, which results in black as the output. Grey values between white and black darken the values assigned to the Main input.

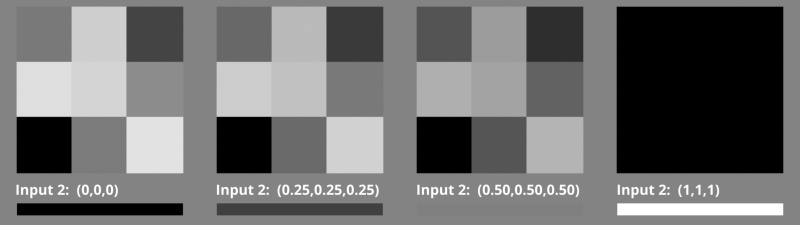

The effect of the Multiply Complement Colour node when greyscale values are used for Input 2.
The effect of the Multiply Complement Colour node when greyscale values are used for Input 2.


This example shows the effect of assigning red, green, or blue values to Input 2 of the Multiply complement colour node. Where the component values from the Main input and Input 2 are the same, black is the result.

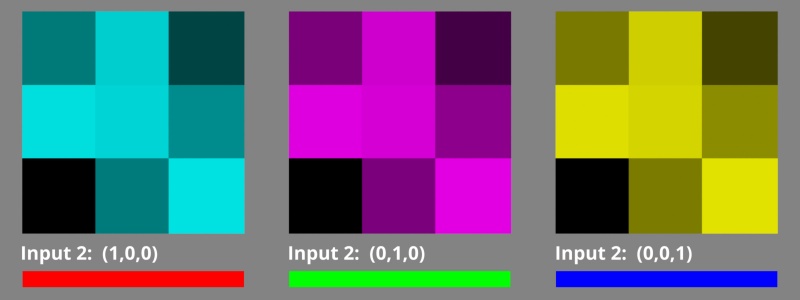

The effect of the Multiply Complement Colour node when red, green, or blue is used for Input 2.
The effect of the Multiply Complement Colour node when red, green, or blue is used for Input 2.


This example shows the effect of assigning secondary colours, yellow, magenta, or cyan to Input 2 of the Multiply complement colour node. Where the component values from the Main input and Input 2 are the same, black is the result.

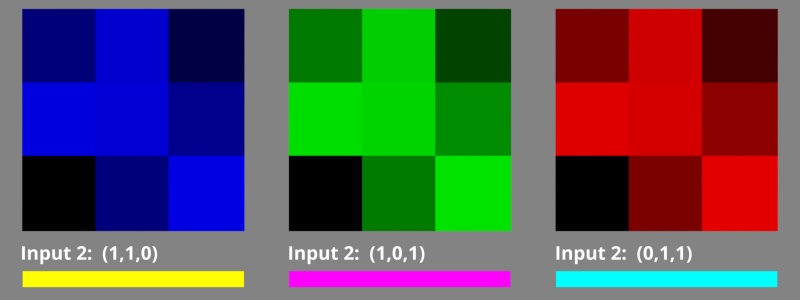

The effect of the Multiply Complement Colour node when yellow, magenta, or cyan is used for Input 2.
The effect of the Multiply Complement Colour node when yellow, magenta, or cyan is used for Input 2.

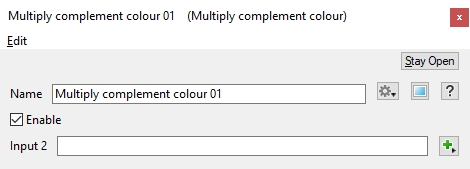

Settings:

  • Name: This setting allows you to apply a descriptive name to the node, which can be helpful when using multiple Multiply Complement Colour nodes in a project.
  • Enable: When checked, the node is active and the multiplication operation will take place. When unchecked the values assigned to its Main Input, if any, are passed through, otherwise a value of 0 is passed through.
  • Input 2: The component values from the shader or function nodes assigned to this setting are multiplied with those from the Main Input. When nothing is assigned, the Main Input values, if any, are passed through. If the Main Input is unassigned, the output from the node is 0.
