Heightfield Erode v3: Difference between revisions
Jump to navigation
Jump to search
No edit summary |
Added descriptions and example images for Heightfield Erode v3. Kept legacy example movies. |
||
| Line 1: | Line 1: | ||
[[ | [[File:Erode_00_GUI.png|none|470px|Heightfield Erode v3]] | ||
== Overview == | |||
Heightfield Erode simulates the natural effects of weather and water flow on the terrain over a period of time. It enhances the realism of a heightfield by creating gorges, chasms and redistribution of the surface material. | |||
''' | '''Settings:''' | ||
* '''Name: ''' This setting allows you to apply a descriptive name to the Erode node, which can be helpful when using multiple erosion processes on a heightfield. | |||
* '''Result mode: '''This menu has two options. | |||
<ul> | |||
[[File:Erode_01_GUI_ResultMode.png|none|303px|Result mode options.]] | |||
<u>Erode Heightfield</u>: This option erodes the terrain based on the various settings below. | |||
<u>Difference (Erosion Field)</u>: This option returns the difference between the calculated erosion process and the original heightfield it was generated from. Once saved via a Heightfield Generate node (see image below) as a TER or EXR file, it can be merged with the original Heightfield allowing the amount of erosion to be increased or decreased or even animated. | |||
{| | |||
|- | |||
|[[File:ErodeHF_47_DifferenceErosionField100.jpg|none|400px|Difference (Erosion Field) Flow distance = 100]] || [[File:ErodeHF_48_DifferenceErosionField1000.jpg|none|400px|Difference (Erosion Field) Flow distance = 1000]] | |||
|- | |||
| [[File:ErodeHF_49_NodeNetwork_SaveHF.jpg|none|400px|Node network pane. How to save eroded heightfield.]] || [[File:ErodeHF_50-2_NodeNetwork_MergeHF.jpg|none|400px|Node network pane. How to merge original heightfield and eroded heightfield.]] | |||
|} | |||
</ul> | |||
* '''Flow distance: ''' This setting controls the overall length of a channel or groove that is eroded. | |||
<ul> | |||
{| | |||
|- | |||
| [[File:ErodeHF_02_OFF.jpg|none|266px|Heightfield erode off.]] || [[File:ErodeHF_03_FlowDistance100.jpg|none|266px|Flow distance = 100.]] || [[File:ErodeHF_04_FlowDistance1000.jpg|none|266px|Flow distance = 1000.]] | |||
|} | |||
</ul> | |||
* '''Duration: ''' This setting represents time. The higher the value the more time elapses, therefore more erosion and channels are created and the more time they have to interact with each other. | |||
<ul> | |||
{| | |||
|- | |||
| [[File:ErodeHF_05_FlowDistance100_Duration0p25.jpg|none|266px|Flow distance = 100, Duration 0.25]] || [[File:ErodeHF_06_FlowDistance100_Duration1.jpg|none|266px|Flow distance = 100, Duration = 1 (default)]] || [[File:ErodeHF_07_FlowDistance100_Duration10.jpg|none|266px|Flow distance = 100, Duration = 10]] | |||
|- | |||
| [[File:ErodeHF_08_FlowDistance1000_Duration0p25.jpg|none|266px|Flow distance = 1000, Duration = 0.25]] || [[File:ErodeHF_09__FlowDistance1000_Duration1.jpg|none|266px|Flow distance = 1000, Duration = 1 (default)]] || [[File:ErodeHF_10_FlowDistance1000_Duration10.jpg|none|266px|Flow distance = 1000, Duration = 10]] | |||
|} | |||
</ul> | |||
* '''Erosion power: ''' This setting controls how deep a channel or groove is. A value of 1 represents the highest possible erosion that could occur over the “Duration” value, or a given period of time. | |||
<ul> | |||
{| | |||
|- | |||
| [[File:ErodeHF_11_FlowDistance100_ErosionPower0p25.jpg|none|400px|Flow distance = 100, Erosion power = 0.25 (default)]] || [[File:ErodeHF_12_FlowDistance100__ErosionPower1.jpg|none|400px|Flow distance = 100, Erosion power = 1]] | |||
|- | |||
| [[File:ErodeHF_13_FlowDistance1000_ErosionPower0p25.jpg|none|400px|Flow distance = 1000, Erosion power = 0.25 (default)]] || [[File:ErodeHF_14_FlowDistance1000_ErosionPower1.jpg|none|400px|Flow distance = 1000, Erosion power = 1]] | |||
|} | |||
</ul> | |||
*'''Deposition: ''' This setting controls how much of the eroded material is deposited along the flow channel. A value of 1 is the most accurate, meaning that all of the eroded material is deposited along the flow channel. | |||
<ul> | |||
{| | |||
|- | |||
| [[File:ErodeHF_15_FlowDistance100_Deposition0.jpg|none|266px|Flow distance = 100, Deposition = 0]] || [[File:ErodeHF_16_FlowDistance100_Deposition0p25.jpg|none|266px|Flow distance = 100, Deposition = 0.25]] || [[File:ErodeHF_17_FlowDistance100_Deposition1.jpg|none|266px|Flow distance = 100, Deposition = 1 (default)]] | |||
|- | |||
| [[File:ErodeHF_18_FlowDistance1000_Deposition0.jpg|none|266px|Flow distance = 1000, Deposition = 0]] || [[File:ErodeHF_19_FlowDistance1000_Deposition0p25.jpg|none|266px|Flow distance = 1000, Deposition = 0.25]] || [[File:ErodeHF_20_FlowDistance1000_Deposition1.jpg|none|266px|Flow distance = 1000, Deposition = 1 (default)]] | |||
|} | |||
</ul> | |||
* '''Deposition rate: ''' This setting controls whether the redistribution of eroded material along the flow channel is biased towards the beginning or end of the flow channel. | |||
<ul> | |||
{| | |||
|- | |||
| [[File:ErodeHF_21_FlowDistance100_DepositionRate0.jpg|none|400px|Flow distance = 100, Deposition rate = 0]] || [[File:ErodeHF_22_FlowDistance100_DepositionRate0p25.jpg|none|400px|Flow distance = 100, Deposition rate = 0.25]] | |||
|- | |||

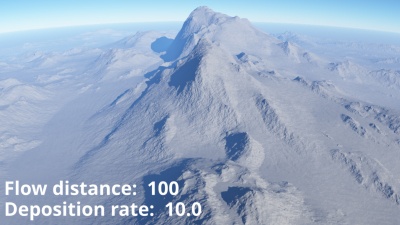

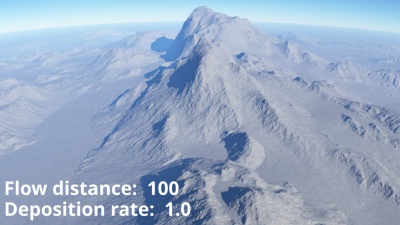

| [[File:ErodeHF_23_FlowDistance100_DepositionRate1.jpg|none|400px|Flow distance = 100, Deposition rate = 1 (default)]] || [[File:ErodeHF_24_FlowDistance100_DepositionRate10.jpg|none|400px|Flow distance = 100, Deposition rate = 10]] | |||
|- | |||

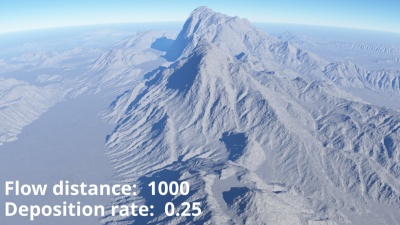

| [[File:ErodeHF_25_FlowDistance1000_DepositionRate0.jpg|none|400px|Flow distance = 1000, Deposition rate = 0]] || [[File:ErodeHF_26_FlowDistance1000_DepositionRate0p25.jpg|none|400px|Flow distance = 1000, Deposition rate = 0.25]] | |||
|- | |||
| [[File:ErodeHF_27_FlowDistance1000_DepositionRate1.jpg|none|400px|Flow distance = 1000, Deposition rate = 1 (default)]] || [[File:ErodeHF_28_FlowDistance1000_DepositionRate10.jpg|none|400px|Flow distance = 1000, Deposition rate = 10]] | |||
|} | |||
</ul> | |||
* '''Diffusion: ''' This setting adds some random variation to the flow directions, which can simulate roughness in the terrain, as if the flow channels interact with each other. | |||
<ul> | |||
{| | |||
|- | |||
| [[File:ErodeHF_29_FlowDistance100_Diffusion0.jpg|none|400px|Flow distance = 100, Diffusion = 0]] || [[File:ErodeHF_30_FlowDistance100_Diffusion1p5.jpg|none|400px|Flow distance = 100, Diffusion = 1.5]] | |||
|- | |||
| [[File:ErodeHF_31_FlowDistance100_Diffusion3.jpg|none|400px|Flow distance = 100, Diffusion = 3 (default)]] || [[File:ErodeHF_32_FlowDistance100_Diffusion10.jpg|none|400px|Flow distance = 100, Diffusion = 10]] | |||
|- | |||
| [[File:ErodeHF_33_FlowDistance1000_Diffusion0.jpg|none|400px|Flow distance = 1000, Diffusion = 0]] || [[File:ErodeHF_34_FlowDistance1000_Diffusion1p5.jpg|none|400px|Flow distance = 1000, Diffusion = 1.5]] | |||
|- | |||
| [[File:ErodeHF_35_FlowDistance1000_Diffusion3.jpg|none|400px|Flow distance = 1000, Diffusion = 3 (default)]] || [[File:ErodeHF_36_FlowDistance1000_Diffusion10.jpg|none|400px|Flow distance = 1000, Diffusion = 10]] | |||
|} | |||
</ul> | |||
*'''Diffusion adapts to slope:''' When enabled the erosion process will follow more closely the contours of the terrain. | |||
<ul> | |||
{| | |||
|- | |||

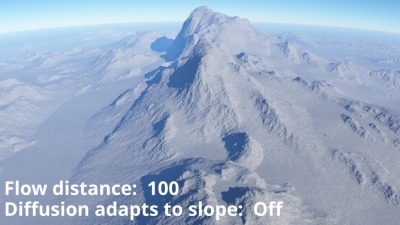

| [[File:ErodeHF_37_FlowDistance100_DiffusionAdaptsToSlopeOff.jpg|none|400px|Flow distance = 100, Diffusion adapts to slope off.]] || [[File:ErodeHF_38_FlowDistance100_DiffusionAdaptsToSlopeOn.jpg|none|400px|Flow distance = 100, Diffusion adapts to slope on.]] | |||
|- | |||

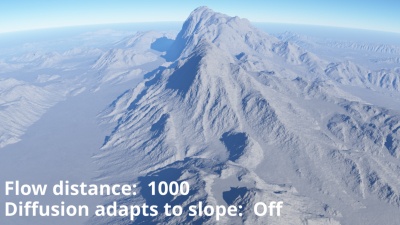

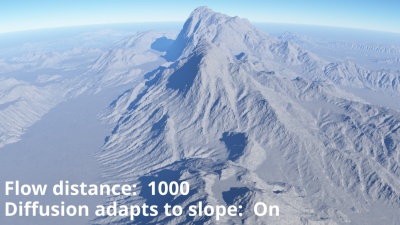

| [[File:ErodeHF_39_FlowDistance1000_DiffusionAdaptsToSlopeOff.jpg|none|400px|Flow distance = 1000, Diffusion adapts to slope off.]] || [[File:ErodeHF_40_FlowDistance1000_DiffusionAdaptsToSlopeOn.jpg|none|400px|Flow distance = 1000, Diffusion adapts to slope on.]] | |||
|} | |||
</ul> | |||
* '''Slip at angle: ''' This setting controls the angle at which the terrain begins to slip. A value of 90 degrees is the same as the setting being unchecked or off. Lower values allow steep slopes to erode quickly while higher values preserve them. | |||
<ul> | |||
{| | |||
|- | |||
| [[File:ErodeHF_41_FlowDistance100_SlipAtAngle15.jpg|none|266px|Flow distance = 100, Slip at angle = 15 degrees]] || [[File:ErodeHF_42_FlowDistance100_SlipAtAngle45.jpg|none|266px|Flow distance = 100, Slip at angle = 45 degrees (default)]] || [[File:ErodeHF_43_FlowDistance100_SlipAtAngle90.jpg|none|266px|Flow distance = 100, Slip at angle = 90 degrees]] | |||
|- | |||
| [[File:ErodeHF_44_FlowDistance1000_SlipAtAngle15.jpg|none|266px|Flow distance = 1000, Slip at angle = 15 degrees]] || [[File:ErodeHF_45_FlowDistance1000_SlipAtAngle45.jpg|none|266px|Flow distance = 1000, Slip at angle = 45 degrees (default)]] || [[File:ErodeHF_46_FlowDistance1000_SlipAtAngle90.jpg|none|266px|Flow distance = 1000, Slip at angle = 90 degrees]] | |||
|} | |||
</ul> | |||
* '''Auto calculate: ''' When checked, or enabled, changes made to the heighfield settings will automatically cause the erosion calculations to begin. | |||
* '''Erode Now: ''' Clicking this button starts the calculations for the erosion process. | |||
'''Legacy examples''' | |||
{| | {| | ||
Revision as of 21:19, 30 December 2020

Overview
Heightfield Erode simulates the natural effects of weather and water flow on the terrain over a period of time. It enhances the realism of a heightfield by creating gorges, chasms and redistribution of the surface material.
Settings:
- Name: This setting allows you to apply a descriptive name to the Erode node, which can be helpful when using multiple erosion processes on a heightfield.
- Result mode: This menu has two options.

Erode Heightfield: This option erodes the terrain based on the various settings below.
Difference (Erosion Field): This option returns the difference between the calculated erosion process and the original heightfield it was generated from. Once saved via a Heightfield Generate node (see image below) as a TER or EXR file, it can be merged with the original Heightfield allowing the amount of erosion to be increased or decreased or even animated.
- Flow distance: This setting controls the overall length of a channel or groove that is eroded.
- Duration: This setting represents time. The higher the value the more time elapses, therefore more erosion and channels are created and the more time they have to interact with each other.
- Erosion power: This setting controls how deep a channel or groove is. A value of 1 represents the highest possible erosion that could occur over the “Duration” value, or a given period of time.
- Deposition: This setting controls how much of the eroded material is deposited along the flow channel. A value of 1 is the most accurate, meaning that all of the eroded material is deposited along the flow channel.
- Deposition rate: This setting controls whether the redistribution of eroded material along the flow channel is biased towards the beginning or end of the flow channel.
- Diffusion: This setting adds some random variation to the flow directions, which can simulate roughness in the terrain, as if the flow channels interact with each other.
- Diffusion adapts to slope: When enabled the erosion process will follow more closely the contours of the terrain.
- Slip at angle: This setting controls the angle at which the terrain begins to slip. A value of 90 degrees is the same as the setting being unchecked or off. Lower values allow steep slopes to erode quickly while higher values preserve them.
- Auto calculate: When checked, or enabled, changes made to the heighfield settings will automatically cause the erosion calculations to begin.
- Erode Now: Clicking this button starts the calculations for the erosion process.
Legacy examples
| Flow distance effect |
||
